Conventional Width 1380mm Pu Tpu Glue Hot Melt Adhesive Film
Product: DS8614
Description:
This product is a thermoplastic hot-melt adhesive film, which is supported by release paper and can be repeatedly heated and plasticized. This hot melt adhesive has excellent adhesion to textiles, TPU, PVC, PC, ABS, and has excellent cold resistance.
Application:
DS8614 is used in the bonding of clothing, embroidery, footwear, luggage, handbags, toys, hats, sports materials.
Composition:
Polyurethane
Physical Characteristics:
| Color | Foggy translucent | Release Protection | Glassine Release Paper |
| Proportion | 1.18±0.02g/cm³ | Thickness | 0.0125mm-0.15mm |
| Curing Time | 8min | Width | 5mm-1480mm |
| Liquidity Index | 12±5g/10mins (ASTM D1238-04) | Conventional Thickness | 0.03mm,0.05mm,0.08mm,0.10mm |
| Hardness | 84±3 (Shore A) | Conventional Width | 1380mm |
| Melting Range | 100-125℃ (Tunsing Melting point instrument) | Conventional Length | 100 yards |
| Activation Temperature | 110-145℃ (Tunsing) | Finished Product | 1380mm*100yards/roll |
Recommended Bonding Conditions:
| First Lamination | Second Implanting |
| Mechanical Mold Temperature | 130℃-150℃ | Mechanical Mold Temperature | 130℃-170℃ |
| Hot Pressing Time | 5-15 seconds | Packing Time | 8-25 seconds |
| Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
1.Bonding temperature and pressure and time relate to the bonding strength of the film to the material. The bonding temperature must be close to the temperature set by the machine, the pressure must be uniform, and the mold and press rolls must be flat.
2.The bonding conditions used will vary between machines and materials. The conditions indicated here are only basic. The most ideal bonding conditions should be established by manufacturing for the specific application.

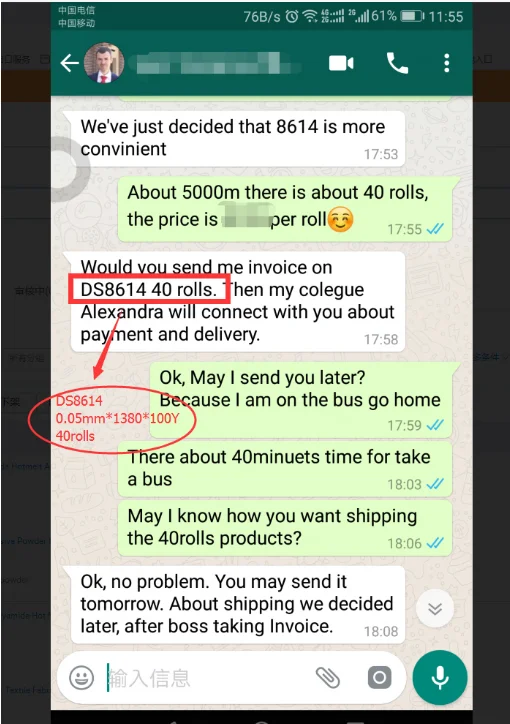

Buyer Feedback
Related products:
Packing&shiping:
packing: 100 yard in roll, 1roll/ctn
shipping: 5-7days
Company Information:
2017 Exihibition in GuangZhou
FAQ:
1 .How about hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your demands ,then recommend you right products to you.
2.Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years experience. able to assist you R&D new products. So if you need bonding some special materials, please don't hesitate to let us know.
3.How do you transport the products?
If you are not urgent, we usually transport by ship because it is the cheapest way. But for the West Asia area,
we deliver by train because there is no sea to ship. And for samples and urgent cargo, we transport it by air as it is the fastest way .Of course if you have other better idea about transport, we will accept it.
4. May I have your samples?
If you need some sample for reference, please let us know your fully address/ship
mode with courier ,and we will arrange sample for your reference.
5. How long is the lead time?
Sample lead time:3-7 days
Bulk lead time:7-10 days(depends on order quantity)
6. How do I pay for my order?
We accept L/C ,T/T , Paypal.
